Fully Automatic Smart Satellite Antenna
SPECIFICATION
- Motorizing Auto Angle Range : Elevation(15°~90°), Azimuth(360°), Skew(-90°~+90°)
- Type of Stabilization : 3-Axis GPS Auto Tracking
- LNB Type Supply : Universal LNB, Twin Output
- LNB Power Supply : Horizontal(+16~19VDC), Vertical(+12~14VDC)
- Receiving Frequency Range : 10.7Ghz~12.75Ghz(Ku Band)
- Antenna Gain : 32.5dBi
- Conversion Gain : 60dB
- Antenna Assembly(L/W/H) : 535mm X 288mm X 89mm
- Weight : 5.5kg(Flat Antenna Assembly)
- Power Source : 12V / 5A DC
- Satellite Search Method : Smart Phone (iPhone/Android)
FALCON POTABLE SATELLITE ANTENNA DEMO
1. How to control the antenna with a smartphone
2. How to watch channels with a smartphone
3. So durchsuchen Sie den Satelliten.
4. So wechseln Sie den Satelliten.
5. Verwendung des erweiterten Modus.
Semi Auto Tripod Satellite Antenna
SPECIFICATION
- Motorizing Auto Angle Range : Elevation(15°~90°), Azimuth(360°), Skew(-90°~+90°)
- Type of Stabilization : 3-Axis GPS Manual Tracking
- LNB Type Supply : Universal LNB, Twin Output
- LNB Power Supply : Horizontal(+16~19VDC), Vertical(+12~14VDC)
- Receiving Frequency Range : 10.7Ghz~12.75Ghz(Ku Band)
- Antenna Gain : 32.5dBi
- Conversion Gain : 60dB
- Antenna Assembly(L/W/H) : 535mm X 288mm X 89mm
- Weight : 3.5kg(Flat Antenna Assembly)
- Power Source : 12V / 3A DC
- User Interface : Touch Screen 2.8″ LCD
- Satellite Search Method : Manual (Elevation : Guide Display Screen)
X4
MAIN FUNCTION
- PS4/XBOX/DVD/STB Video Capture.(720P/1080i/1080P)
- PS4/XBOX/DVD/STB IP Streaming.(Min 600kbps ~ Max 8Mbps)
- Satellite/Cable TV with KODI
SUB FUNCTION
- Youtube capture
- Netflix
- Web-browser
- Miracast
- Google Play Store
SPECIFICATION
- Dual-core ARM Cortex A9 processor + Quad-core GPU
- 1GB DDR & 4GB EMMC
- Two HDMI Input & One HDMI Output
- Satellite(Cable x 4) Tuner
- 10/100 Eth & WIFI
- Two USB port & eSATA 3.0 port
X4 HDMI Recording + IP Streaming + KODI + DVB demo

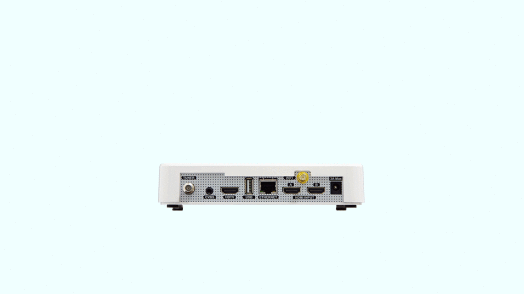

A1
MAIN FUNCTION
- 4K UHD STB + Google Assistant (Speech Recognition)
- Satellite/Cable TV
- IP streaming. (Min 600kbps ~ Max 8Mbps)
SUB FUNCTION
- IP TV
- Netflix
- Youtube
- Miracast
- Web browser
- Google Play Store
SPECIFICATION
- Quad-core ARM Cortex A53 + Quad-core GPU
- 2GB DDR & 4GB EMMC
- Max 4K @ 60fps 10bit hardware decoding
- 1080p @ 30fps hardware encoding
- Satellite (Cable x 4) tuner
- HDMI 2.0a output
- 10/100/1G Eth & WIFI
- Two USB port & eSATA 3.0 port
What is Google Assistant?
